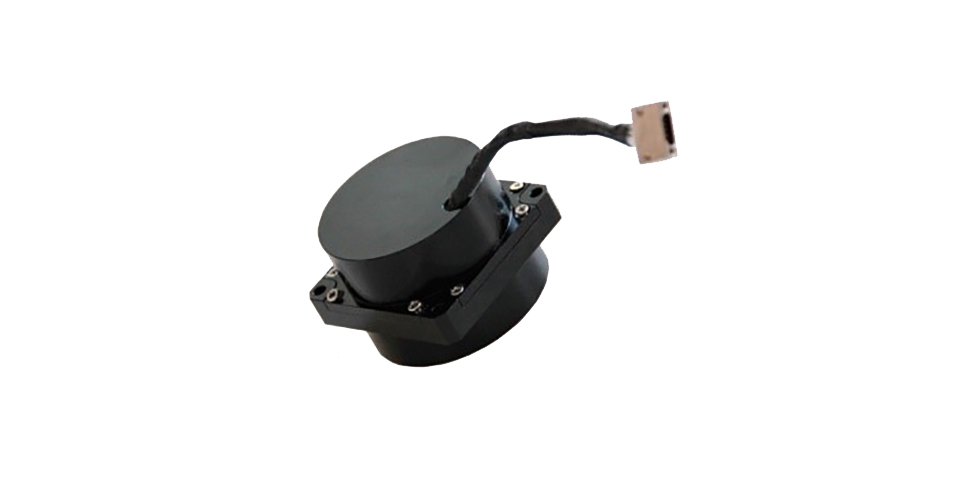

HTS-FB6 Fiber optic gyroscope

Fiber optic gyroscope is a key fiber optic sensor that plays an important role in inertial navigation systems. It uses laser and optical fiber technology to measure the angular velocity or rotation angle of an object relative to inertial space without relying on any rotating mass. Fiber optic gyroscopes have the characteristics of high precision, high stability and low power consumption.

Product Detail

HTS-FB6 fiber optic gyroscope (FOG) is a fully solid-state high-precision digital closed-loop fiber optic gyroscope with the characteristics of high precision, light weight, small size and low power consumption. Based on the SAGNAC principle, it consists of SLD/erbium-doped light source, fiber coupler, photodetector, integrated optical modulator, fiber sensing ring, circuit and structure. It follows the classic design concept of traditional fiber optic gyroscope, adopts mature fiber optic gyroscope manufacturing technology, combines the advantages of similar fiber optic gyroscopes at home and abroad, and adopts the original design concept of separating the optical angular velocity sensitive unit and the signal detection unit. It has outstanding advantages such as excellent full-temperature performance, perfect magnetic shielding, simple interface and easy use.

Functions: The HTS-FB6 fiber optic gyroscope consists of an optical angular velocity sensitive unit and a signal detection unit, providing single-axis angular increment information and internal temperature information.

Applications: optoelectronic pods, flying platforms, strapping inertial navigation, inertial measurement systems, optical, photographic instruments, platform stabilization devices, inertial measurement instruments and other applications.

Performance Characteristics

Item	Model: HTS-FB6
Item	01	02
Appearance	The outer surface of the gyroscope should not have obvious damage such as scratches, bumps and Indentations, and the surface of the material should not have defects such as rust, pores, and spots;
Dimensions (mm)	50×50×36	50×50×36
Start time (s)	5	5
Bias drift (°) / h (10s smooth, fix temperature)	≤0.1	≤0.3
Bias drift (°) / h (10s smooth) -45~ + 70	≤0.3	≤0.5
Bias repeatability (°) / h	≤0.05	≤0.1
Random walk coefficient⁽º⁾/h^1/2	≤0.01	≤0.02
Scale factor non-linearity (ppm)	≤10	≤20
Scale factor repeatability (ppm)	≤10	≤20
Operate temperature ℃	-45～+70	-45～+70
Storage temperature of (℃)	-50～+80	-50～+80
Dynamic range (°) / s	±900	±900
Supply voltage (V)	+5	+5
Steady-state power consumption (full temperature) (W)	<4	<4
Weight (g)	＜130	＜130

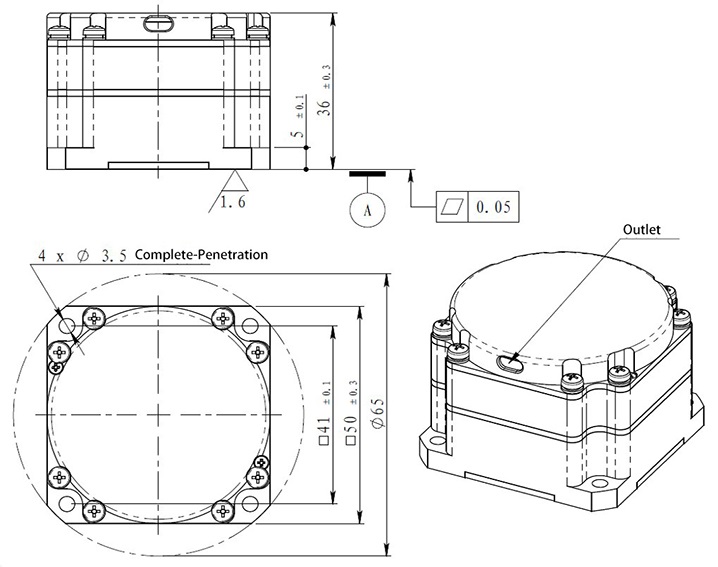

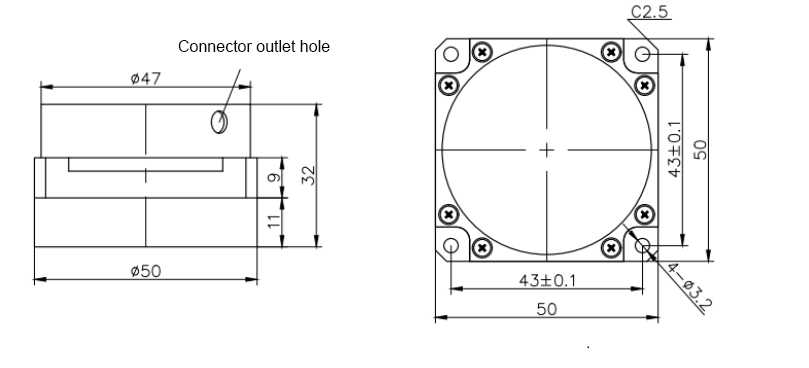

Dimension & Drawing
