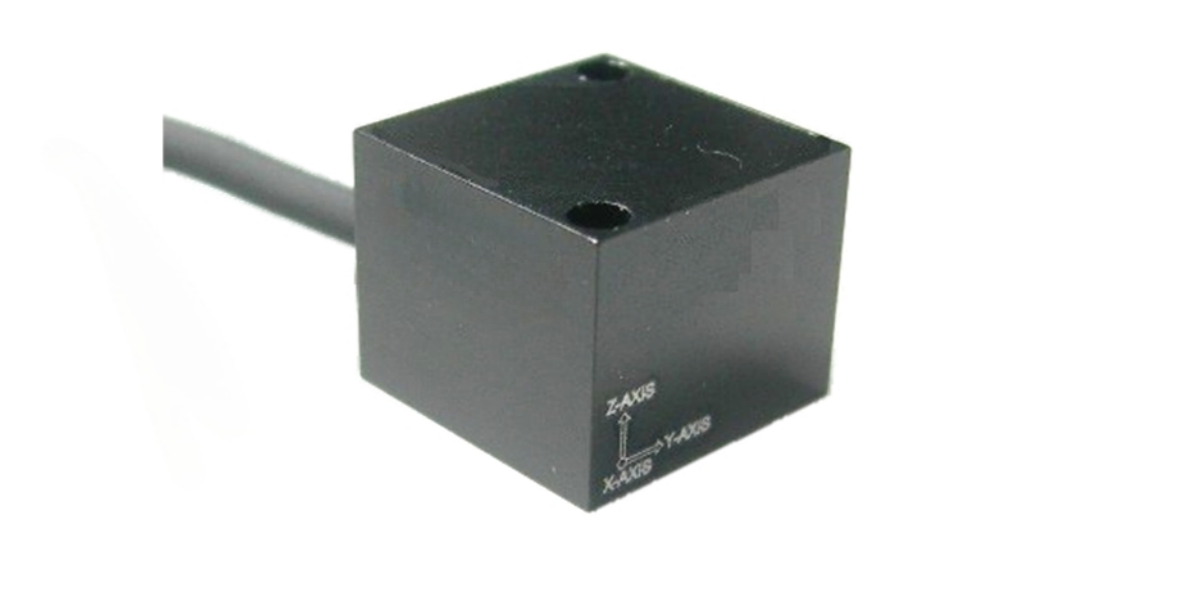

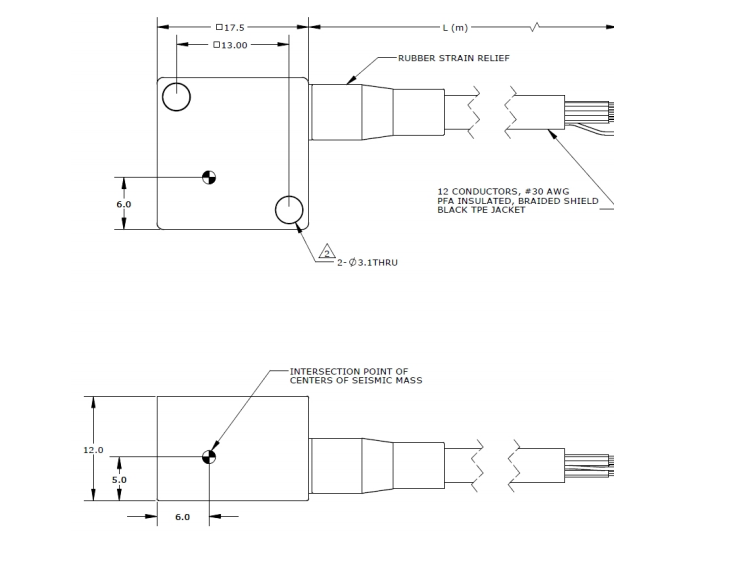

The Model HTS-175 accelerometer is a miniature triaxial piezoresistive MEMS accelerometer, specially designed for crash testing, it features light-weight, wide-frequency response. Two optional range are available for selection 500g and 2000g full scales. The HTS-175 3-axis MEMS accelerometer uses the latest piezoresistive MEMS sensitive element accelerometer, which provides excellent dynamic response and stability. Built-in full-bridge temperature compensation within the range of 0~50℃, lateral sensitivity <3%. The HTS-175 piezoresistive accelerometer adopts sealing processing technology and can work for a long time in oily or splashing areas. The advanced MEMS structure design ensures the product's outstanding shock survivability and frequency response within 7KHz without obvious distortion and phase shift.
Features: Applications:
• 20-10Vdc Excitation • Auto crash
• ±60,000 g maximum range • Shock/impact test
• Shock, Low & high frequency • Drop test
• Miniature triaxial
• DC response
• Water proof
• Intergrated 1 to 3 cable
Performance Characteristics
Unless otherwise specified, the following typical values are measured at 24°C (+75°F), 100Hz, 10Vdc.
|
Parameters |
-0500 |
-2000 |
Unit |
|
Measurement range |
±500 |
±2000 |
g |
|
Sensitivity |
0.4 |
0.15 |
mV/g |
|
Frequency response ±5% (Z-axial) |
0-4000 |
0-4000 |
Hz |
|
Frequency response ±5% (X/Y-axial) |
0-3000 |
0-3000 |
Hz |
|
Frequency response ±1dB |
0-4200 |
0-7000 |
Hz |
|
Phase response ±5° |
0-1000 |
0-2000 |
Hz |
|
Resonant frequency |
15000 |
26000 |
Hz |
|
Damping ratio |
0.3 |
0.05 |
\ |
|
Shock limit |
10000 |
10000 |
g |
|
General parameters |
Specification range |
Unit |
|
Zero output |
<±50 |
mV |
|
Transverse sensitivity (<1%by option) |
<3 |
% |
|
Non-linearity |
±1 |
% Reading |
|
Zero temperature drift, 0-50 ° C (32-122 ° F) |
±0.05 (±0.03) |
%FSO/°C (%FSO/°F) |
|
Sensitivity temperature drift, 0-50 ° C (32-122 ° F) |
±0.1 (±0.06) |
%/°C (%/°F) |
|
Excitation voltage |
2 to 10 |
Vdc |
|
Insulation impedance (@100Vdc) |
>100 |
MΩ |
|
Input impedance |
2400 to 6000 |
Ω |
|
Output impedance |
2400 to 6000 |
Ω |
|
Operating temperature |
-20 to +85 (-40 to +185) |
°C (°F) |
|
Protection |
Epoxy Sealed |
|
|
Weight (Cable not included) |
10 |
Grams |
|
Installation torque |
3 (0.3) |
lb-in (Nm) |
