The HTS-JA3 series navigation grade quartz accelerometer with small size, big range and high accuracy, excellent reliability and long-term repeatability, which adopts unique miniaturized design and packing. It can be used for both static and dynamic testing. It’s also a standard vibration sensor and inclination sensor.
Its output current is linearly related to the force or acceleration
it receives.
Users can select appropriate sampling resistors through calculation, and achieve the highest precision output. And the temperature sensor can be built-in according to user demands, which used to compensate Bias and Scale factor and reduce the influence of ambient temperature.
Features Applications
- Internal temperature sensor for thermal compensation (optional) Attitude and Heading reference systems (AHRS)
- Test cycle can be chosen (1 month, 3 months, 6 months, 12 months) Inertial measurement units (IMU)
- High output range Inertial navigation systems (INS)
- Compact size Unmanned vehicle systems (UVS)
- Low lag Orientation drilling system for gas and oil industry
- High stability Railway track system
- High accuracy
- Analog output
Performance Characteristics
|
Product Specification |
Model: HTS-JA3 |
|||
|
|
01 |
02 |
03 |
|
|
Measurement Range |
±60g |
±60g |
±60g |
|
|
Bias K0/K1 |
≤±5mg |
≤±7mg |
≤±5mg |
|
|
Bias Temp Coefficient (full Temp) |
≤±15 µg/°C |
≤±50 µg/°C |
≤±50 µg/°C |
|
|
Bias Repeatability σ K0 (1σ，1 month) |
≤±15 µg (1 month) |
≤±50 µg (1 month) |
≤±50 µg (1 month) |
|
|
Scale Factor K1 |
0.8~1.2 mA/g |
0.8~1.2 mA/g |
0.4~0.8 mA/g |
|
|
Scale Factor Temp Coefficient (full Temp) |
≤±15 ppm/°C |
≤±80 ppm/°C |
≤±50 ppm/°C |
|
|
Scale Factor Repeatability σ K1/K1 （1σ，1 month) |
≤±15 ppm (1 month) |
≤±50 ppm (1 month) |
≤±50 ppm (1 month) |
|
|
Second-order Nonlinearity K2 |
≤±20 µg/g² |
≤±30 µg/g² |
≤±20 µg/g² |
|
|
Second-order Nonlinearity Repeatability K2/K1(1σ，1 month) |
≤±20 µg/g² (1 month) |
≤±30 µg/g² (1 month) |
≤±30 µg/g² (1 month) |
|
|
Threshold |
≤5×10-6 g |
≤5×10-6 g |
≤5×10-6 g |
|
|
Noise (sample resistance 840Ω) |
≤5mv |
≤8.4mv |
≤8.4mv |
|
|
Nature Frequency |
400~800 Hz |
400~800 Hz |
400~800 Hz |
|
|
Band width |
800~2500 Hz |
800~2500 Hz |
800~2500 Hz |
|
|
Operating Voltage |
±12~±15 V |
±12~±15 V |
±12~±15 V |
|
|
Current consumption |
≤±20mA |
≤±20mA |
≤±20mA |
|
|
Operation Temperature |
-55~+85 ℃ |
-55~+85 ℃ |
-55~+85 ℃ |
|
|
Storage temperature |
-60~+120 ℃ |
-60~+120 ℃ |
-60~+120 ℃ |
|
|
Shock |
150g, 5ms,1/2sin |
150g, 5ms,1/2sin |
150g, 5ms,1/2sin |
|
|
Random vibration |
10g(20~2000Hz) |
10g(20~2000Hz) |
10g(20~2000Hz) |
|
|
Temperature sensor |
Can be customized |
Can be customized |
Can be customized |
|
|
Dimension |
Ф18.2*23 mm |
Ф18.2*23 mm |
Ф18.2*23 mm |
|
|
Weight |
≤30g |
≤30g |
≤30g |
|

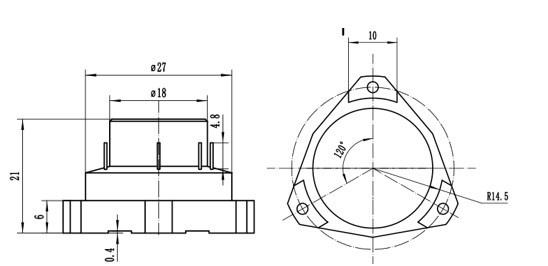

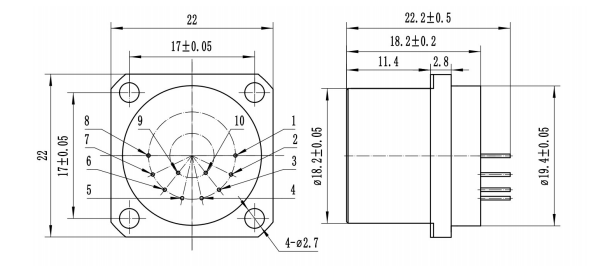

Dimension & Drawing
Note:
1. Scale factor can be adjusted according to users’ requirements;
2. Temperature sensor (optional): AD590, pt1000, 18B20 are available to be chosen;
3. Test cycle: 1 month, 3 months, 6 months, 12 months, sensors will be tested according to users’ requirements;
4. One-year warranty.
