HTS-JA4 Quartz flexture accelerometer

Some well-known quartz flexible accelerometers (quartz pendulum accelerometers) with high operating temperature 180°C, specially designed for harsh environment, our quartz accelerometers HTS-JA4 and HTS-JA6 can completely instead of QAT160 and QAT185 quartz accelerometers. We use a dual torque structure in our accelerometer sensors, which is different from other companies' products, it can make the quartz accelerometers' bias and proportional coefficient more stable.

Product Detail

The HTS-JA4 series quartz accelerometers with high temperature and vibration-resistance, excellent reliability and long-term repeatability, which adopts a unique high-temperature and shock resistance design, packing process and special circuit. It can be used for both static and dynamic testing. It’s also a standard vibration sensor.

Its output current is proportional to the measured acceleration, providing static and dynamic acceleration measurements.

Users can select appropriate sampling resistors through calculation, and achieve the highest precision output. And the temperature sensor can be built-in according to user demands, which used to compensate Bias and Scale factor and reduce the influence of ambient temperature.

It can replace QA650 quartz accelerometer, T185 quartz accelerometer, T160 quartz accelerometer and JAE series quartz accelerometer. We adopt a dual torque device structure, which is different from other companies.

Features Applications

Internal temperature sensor for thermal compensation (optional) Widely used in measurement while drilling system (MWD)
Test cycle can be chosen (1 month, 3 months, 6 months, 12 months) Inclination testing of bridges, dams, coals etc.
High output range High speed railway control
Compact size Stability of ships etc.
Low lag Railway track system
High stability
High accuracy
Analog output

Performance Characteristics

Product Specification	Model: HTS-JA4
Product Specification	01	02	03
Measurement Range	±30g	±30g	±30g
Bias K₀/K₁	＜10mg	＜15mg	＜15mg
Bias Repeatability σ K₀ (1σ，1 month)	＜50µg (1 month)	＜200µg (1 month)	＜200µg (1 month)
Scale Factor Temp Coefficient	＜50µg/℃	＜100µg/℃	＜100µg/℃
Scale Factor K₁	1.1~1.3 mA/g	1.1~1.3 mA/g	1.1~1.3 mA/g
Scale Factor Repeatability σ K₁/K₁ （1σ，1 month)	＜80 ppm (1 month)	＜150 ppm (1 month)	＜150 ppm (1 month)
Bias Temp Coefficient (full Temp)	＜100ppm	＜200ppm	＜200ppm
Installation error	＜1500µrad	＜1500µrad	＜1500µrad
Vibration rectification error	＜30µg/g 2rms (50-500Hz)	＜100µg/g 2rms (50-500Hz)	＜100µg/g 2rms (50-500Hz)
Noise	＜3000µg-rms (0-10000Hz)	＜3000µg-rms (0-10000Hz)	＜3000µg-rms (0-10000Hz)
Operating temperature	-55～96℃	-55～155℃	-55～180℃
Threshold	＜10µg	＜10µg	＜10µg
Bandwidth	＞300 Hz	＞300 Hz	＞300 Hz
Current consumption	＜20 mA	＜20 mA	＜20 mA
Consumption @ ±15VDC	＜480 mW	＜480 mW	＜480 mW
Input Voltage	±13 to ±18V	±13 to ±18V	±13 to ±18V
Shock	500 g 0.5ms	1000 g 0.5ms	1000 g 0.5ms
Vibration	25 g @30-500Hz	25 g @30-500Hz	25 g @30-500Hz
Installation diameter	Ф25 mm	Ф25 mm	Ф25 mm
Height	21.5 mm	21.5 mm	21.5 mm
Weight	≤55g	≤55g	≤55g

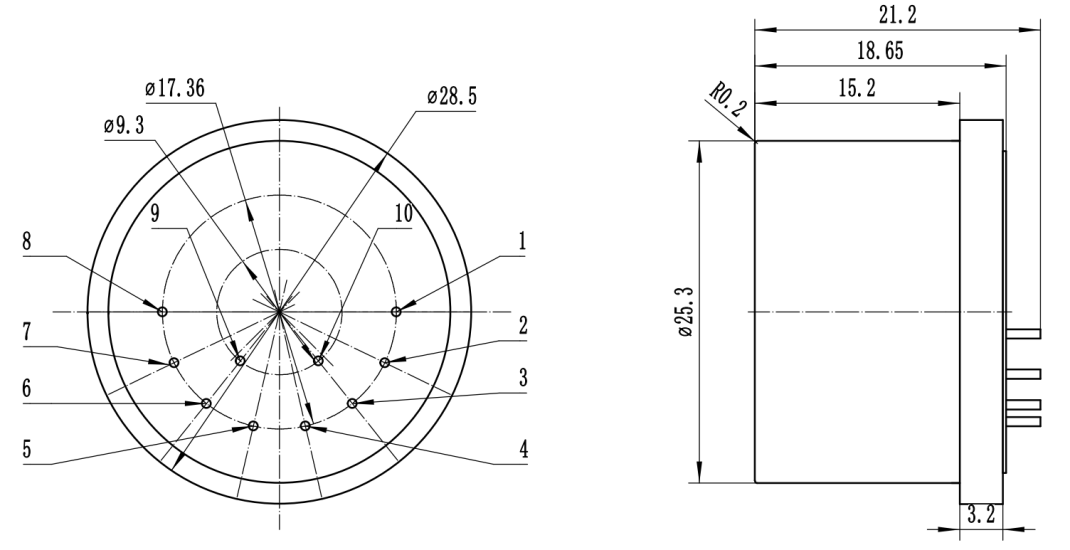

Dimension and drawing

Note:

1. Scale factor can be adjusted according to users’ requirements;

2. Temperature sensor (optional): AD590, pt1000, 18B20 are available to be chosen;

3. Test cycle: 1 month, 3 months, 6 months, 12 months, sensors will be tested according to users’ requirements;

4. One-year warranty.
