HTS-A Quartz accelerometer

Quartz accelerometer HTS-A series is a high precision vibration accelerometer, features with high accuracy and excellent repeatability. This quartz accelerometers are widely used in the vector’s micro-gravity measurement system, inertial navigation system and static angle measurement system. Quartz accelerometers are built in a temperature sensor for zero bias and scale factor temperature compensation, it can effectively reduce the impact of temperature factors.

Product Detail

The HTS-A series navigation grade quartz accelerometers with high range and high accuracy, excellent reliability and long-term repeatability. Its output current is linearly related to the force or acceleration it receives.

Users can select appropriate sampling resistors through calculation, and achieve the highest precision output. And the temperature sensor can be built-in according to user demands, which used to compensate Bias and Scale factor and reduce the influence of ambient temperature.

Features Applications

Internal temperature sensor for thermal compensation (optional) Attitude and Heading reference systems (AHRS)
Test cycle can be chosen (1 month, 3 months, 6 months, 12 months) Inertial measurement units (IMU)
High output range Inertial navigation systems (INS)
Compact size Unmanned vehicle systems (UVS)
Low lag Orientation drilling system for gas and oil industry
High stability Railway track system
High accuracy
Analog output

Performance Characteristics

Product Specification	Model: HTS-A
Product Specification	03	02	01
Measurement Range	≥±20g	≥±20g	≥±20g
Bias	≤±1mg	≤±3mg	≤±3mg
Bias Temp Coefficient	≤±10 µg/°C	≤±10 µg/°C	≤±15 µg/°C
Bias Repeatability	≤10 µg (one month)	≤20 µg (one month)	≤30 µg (one month)
Scale Factor	1.1~1.5 mA/g	1.1~1.5 mA/g	1.1~1.5 mA/g
Scale Factor Temp Coefficient	≤±10 ppm/°C	≤±20 ppm/°C	≤±30 ppm/°C
Scale Factor Repeatability	≤10 ppm (one month)	≤20 ppm (one month)	≤30 ppm (one month)
Second-order Nonlinearity	≤±10 µg/g²	≤±10 µg/g²	≤±15 µg/g²
Second-order Nonlinearity Repeatability	≤10 µg/g² (one month)	≤10 µg/g² (one month)	≤10 µg/g² (one month)
Threshold	≤5×10^-6g	≤5×10^-6g	≤5×10^-6g
Nature Frequency	≤800Hz	≤800Hz	≤800Hz
Operating Voltage	±12~±15 V	±12~±15 V	±12~±15 V
Operation Temperature	-45~+80 °C	-45~+80 °C	-45~+80 °C
Shock	120g,4.5ms,1/2sin	120g,4.5ms,1/2sin	120g,4.5ms,1/2sin
Vibration	8 grms	8 grms	8 grms
Dimension	Ф25.4*30 mm	Ф25.4*30 mm	Ф25.4*30 mm
Weight	≤80g	≤80g	≤80g

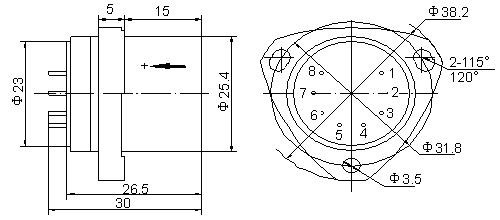

Dimension and drawing

Note:

1. Scale factor can be adjusted according to users’ requirements;

2. Temperature sensor (optional): AD590, pt1000, 18B20 are available to be chosen;

3. Test cycle: 1 month, 3 months, 6 months, 12 months, sensors will be tested according to users’ requirements;

4. One-year warranty.
