Inertial measurement unit HTS-IMU-LP2 can completely replace ADIS16488A

China inertial measurement unit HTS-IMU-LP2 can completely replace ADIS16488A



ADIS16488 is a tactical-grade, 10-DOF (gyroscope, accelerometer, magnetic compass and barometer) inertial sensor. It is mainly used in platform stability and control, navigation, personnel tracking, instrumentation, robotics and other industries.



The ADIS16488A iSensor is a complete inertial system that includes a 3-axis gyroscope, a 3-axis accelerometer, a 3-axis magnetometer, and a pressure sensor. Each inertial sensor combines industry-leading iMEMS® technology with signal conditioning technology to provide optimized dynamic performance. Factory calibration calibrates each sensor for sensitivity, bias, alignment, and linear acceleration (gyro bias). As a result, each sensor has its own dynamic compensation formula to provide accurate sensor measurements.



China high performance Inertial measurement unit HTS-IMU-LP2 (alternative ADIS16488)



HTS-IMU-LP2 IMU is a tactical grade inertial measurement unit based on MEMS technology, which includes a triaxis gyroscope, a triaxis accelerometer, triaxis magntometer, and pressure senor. The HTS-IMU-LP2 adopts the advanced domestic MEMS components, it can effectively reduce the cost. The HTS-IMU-LP2 features with high stability, compact size and light weight.

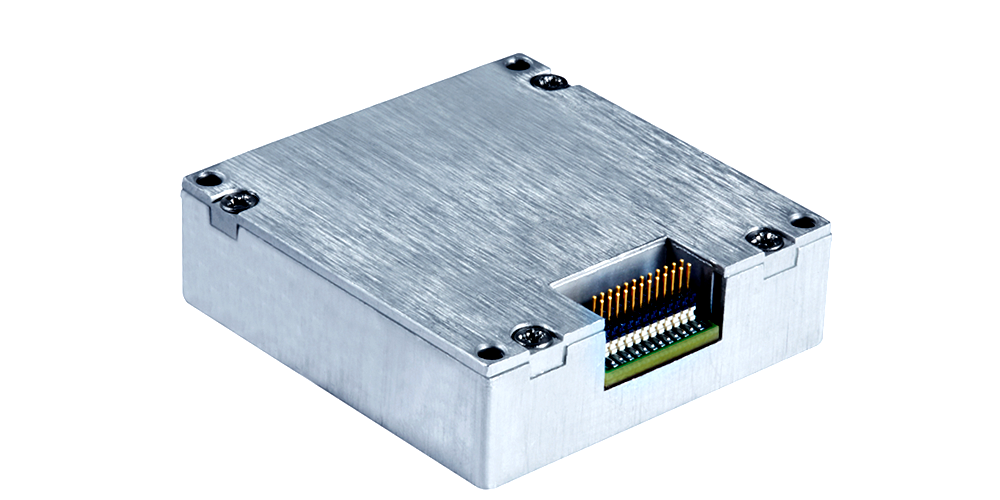

The HTS-IMU-LP2 inertial measurement unit is packaged in a module that is approximately 47 mm × 44 mm × 14 mm and includes a standard connector interface.



Specifications of HTS-IMU-LP2:

Triaxial, digital gyroscope, ±450°/sec dynamic range

±0.05° orthogonal alignment error,4.0°/hr in-run bias stability , 0.26°/√hr angular random walk, 0.01% nonlinearityTriaxial,

Triaxial digital accelerometer, ±18 g

Triaxial, delta angle and delta velocity outputs

Triaxial, digital magnetometer, ±2.5 gauss

Digital pressure sensor, 300 mbar to 1100 mbar

Factory-calibrated sensitivity, bias, and axial alignment

Operating and calibration temperature range: −45°C to +85°C

SPI-compatible serial interface

Programmable operation and control

4 FIR filter banks, 120 configurable taps

Digital input/output: data-ready alarm indicator, optional external sample clock up to 2.4 kHz

Alarms for condition monitoring

Single-supply operation: 3.0 V to 3.6 V

10000 g shock survivability
