China high performance Inertial measurement unit HTS-IMU-LP1 (alternative ADIS16495)

China made inertial measurement unit HTS-IMU-LP1 can completely replace ADIS16495

The ADIS16495 is a complete MEMS inertial system that includes a 3-axis gyroscope and a 3-axis accelerometer. Each inertial sensor in the device combines industry-leading iMEMS® technology and signal conditioning techniques to optimize dynamic performance. Factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear acceleration (gyroscope bias). As a result, each sensor has its own unique dynamic compensation formula that provides accurate sensor measurements. It provides a simple and cost-effective way to integrate accurate multi-axis inertial sensing into industrial systems, especially compared to the complexity and investment associated with discrete designs. It is suitable for applications such as precision instrumentation, stabilization, guidance, navigation, control, avionics, unmanned vehicles, precision autonomous machines, and robotics.

HTS-IMU-LP1 inertial measurement unit HTS-IMU-LP1 Inertial Measurement Unit-China professional MEMS inertial measurement units supplier-Hitech Sensors Tech Co., Ltd is a 6 DOF Tactical Grade IMU based on MEMS technology, which includes a triaxis gyroscope, a triaxis accelerometer. The HTS-IMU-LP1 adopts the advanced domestic MEMS inertial components, it can effectively reduce the cost. The HTS-IMU-LP1 Inertial measurement unit features with high stability, compact size and light weight.

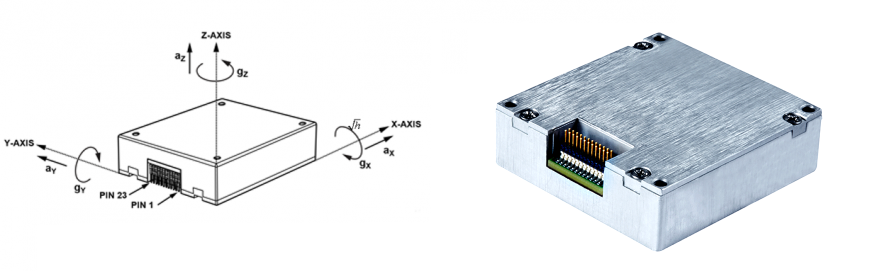

The HTS-IMU-LP1 Inertial measurement unit is packaged in a module that is approximately 47 mm × 44 mm × 14 mm and includes a standard connector interface.



Specifications of HTS-IMU-LP1 Inertial measurement unit:

Triaxial, digital gyroscope, ±450°/sec dynamic range

±0.05° orthogonal alignment error,0.3°/hr in-run bias stability ,0.15°/√hr angular random walk, 0.02% nonlinearity,

1°/h bias repeatability, 20°/h bias error over temperature

Triaxial, digital accelerometer, ±20 g and up to ±40 g (customized)

Triaxial, delta angle and delta velocity outputs

Factory-calibrated sensitivity, bias, and axial alignment

Operating and calibration temperature range: −45°C to +85°C

SPI-compatible serial interface

Programmable operation and control

4 FIR filter banks, 120 configurable taps

Digital input/output: data-ready alarm indicator, optional external sample clock up to 3.2 kHz

Single-supply operation: 3.0 V to 3.6 V 1500 g shock (operating), 10000 g shock (survival)
