HTS-E3/7 High cost-effective three-axis MEMS Gyroscope

HTS-E3/7 three–axis MEMS Gyroscope is a tactical grade MEMS gyro module, with ultra high precision (Bias instability 5°/h, ARW 0.5°/√h), which is a high cost-effective, reliable and high accurate MEMS gyroscope, which is integrated with 32-bit micorocontrollers, and electronic axis alignment is by default. Each axis of MEMS gyroscope is factory calibrated to calibrate zero bias, sensitivity and compensate for temperature effects, providing high accuracy measurements.

HTS-E3/6 Three-axis MEMS gyroscope

MEMS Gyroscope is a tactical grade MEMS gyro module, with ultra high precision (Bias instability 0.05°/h, ARW 0.02°/√h), which is an affordable, robust and reliable, high accurate MEMS gyroscope, which is integrated with 32-bit micorocontrollers, and electronic axis alignment is by default. Each axis is factory calibrated to calibrate zero bias, sensitivity and compensate for temperature effects. The MEMS Gyroscope module is powered by a single +5V supply and communicates via an RS422 interface.

HTS-E3/2 Three-axis MEMS Gyroscope

Three–axis MEMS Gyro is a compact tactical grade MEMS gyro module, with ultra high precision (Bias instability 0.4°/h, ARW 0.17°/√h), which is an affordable, robust and reliable, high accurate MEMS gyroscope. HTS-E3/1A MEMS Gyroscope is a China-made alternative of STIM202 MEMS Gyroscope module, which integrated with 32-bit micorocontrollers. Each axis is factory calibrated to calibrate zero bias, sensitivity and compensate for temperature effects, providing high accuracy measurements.

HTS-E3/1 Three-axis MEMS gyroscope

Three–axis MEMS Gyro is a compact tactical grade MEMS gyro module, with ultra high precision (Bias instability 0.3°/h, ARW 0.15°/√h), which is an affordable, robust and reliable, high accurate MEMS gyroscope. HTS-E3/1A MEMS Gyroscope is a China-made alternative of STIM202 MEMS Gyroscope module, which integrated with 32-bit micorocontrollers. Each axis is factory calibrated to calibrate zero bias, sensitivity and compensate for temperature effects, providing high accuracy measurements.

HTS-K1/2 High accurate single axis MEMS Gyroscope

Single axis MEMS gyroscope is a high-performance silicon-based MEMS inertial sensor. In terms of zero bias repeatability, it can achieve extremely low values, such as as low as 0.5°/h, which enables them to maintain high stability of output data during long-term measurements and provide accurate angle information for the system. In terms of angle random walk indicators as low as 0.02°/√h, effectively reducing noise interference during the measurement process and improving measurement accuracy.

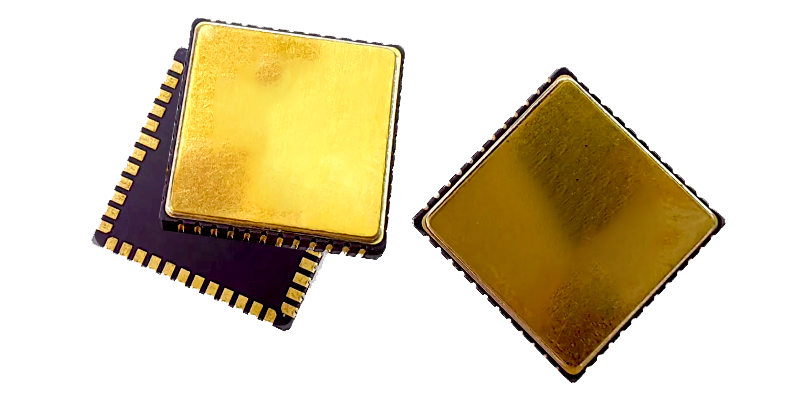

Mems gyroscope chip

Our MEMS gyroscope chips features with high performance and excellent stability, provide cost-effective MEMS gyro chips to the clients worldwide, and the quality of MGZ MEMS gyro chips are checked with word of mouth. We not only provide standard MEMS gyro sensors, but also have the ability to customize the MEMS gyroscopes according to users’s specification request.

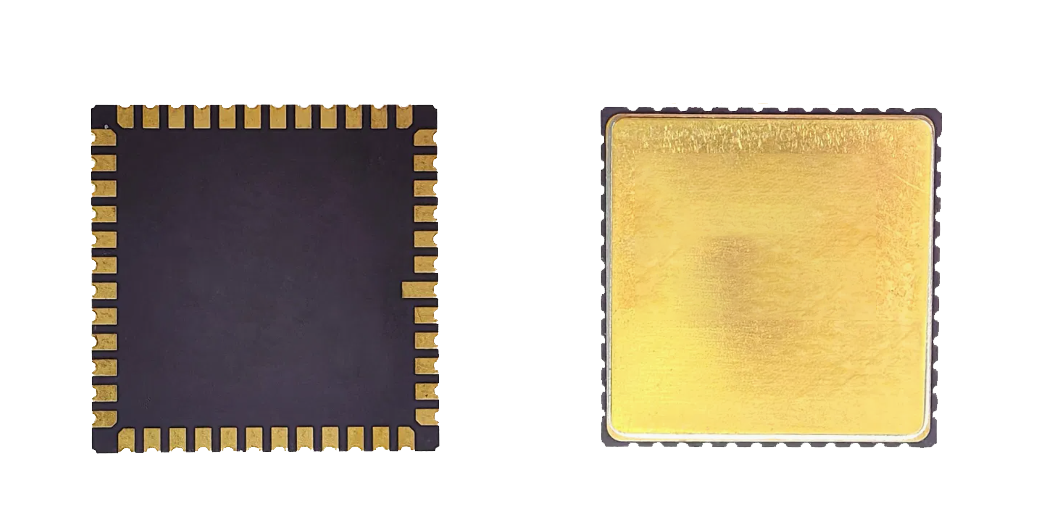

Mems gyroscope chip

Our MEMS Gyro chips are all single axis MEMS angular rate sensor (MEMS Gyro Sensor), its measurement range is from ±100°/s to ±10800°/s, which features with high stability, high performance, high accuracy, compact size 11*11*2 mm.
